The THERMOJET Hot water unit
Easy removal of soiling with 95 °C water temperature
The hot-water unit with Thermojet technology
THERMOJET design
Two heating modules work together with an HDP 72 to generate an operating pressure of up to 500 bar and supply water temperatures of over 95 °C.
- Hot water jet exceeds 95 °C on the surface, well suited for removing oily dirt
- The ES4 control is optimized for the operation of the THERMOJET and takes over the automatic control of the heating modules and speed
- Powerful heating modules deliver hot water reliably and efficiently at the preset temperature
- High-pressure safety valve and safety temperature limiter
- Optimized cleaning results

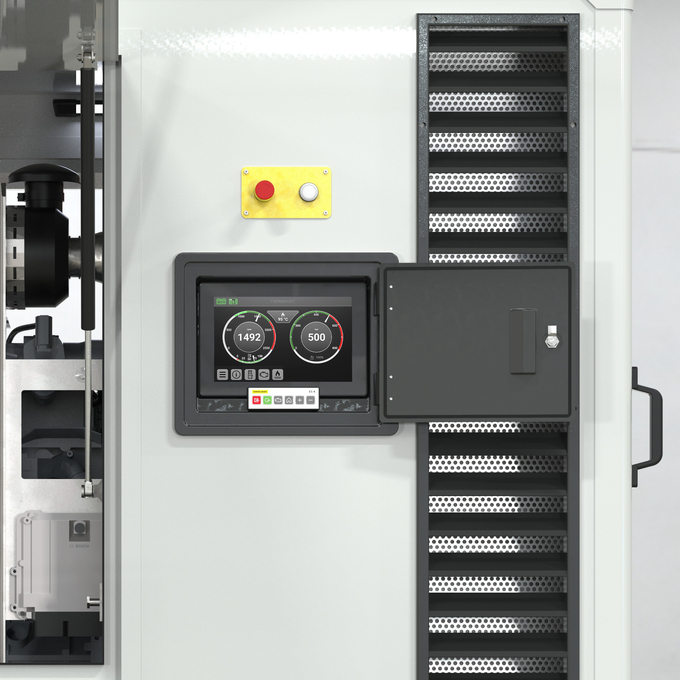

ES 4 - The clever control unit
Developed for fast and intuitive operation in everyday construction site work
Intuitive operation of basic functions.
Large high resolution 10" touch display, splash proof and low reflection.
Additional, construction site-compatible keypad for operating the most important functions. Self-luminous and easy to operate with gloves.
The most important functions immediately at a glance.
Technical details
Thermojet
20 mm
up to 500 bar
up to 30 l/min.
36 kW
30 kW
The THERMOJET combines the extensive know-how from the development of the AQUAJET® series with the special heating module.
- Long lifetime of all high pressure components due to optimal valve and sealing technology, use of top quality materials and precise series production with most modern machines.
- High operational reliability and long maintenance intervals through the hermetical sealing of the gear end by means of the patented bellows sealing system.
- Significant operating cost advantage thanks to the pump which is designed for at least 25,000 operating hours under full load.
- Long lasting corrosion resistance of the fluid end.
- Leakage free pump thanks to the arrangement of all pressurised high pressure components inside the pump housing.
- High reliability in continuous duty due to the performance reserves of high pressure pump, drive engine and all components.
- High efficiency. The Aquajet ultra high pressure pump converts 95 % of the shaft power into hydraulic energy.
- Very smooth running due to low speed at maximum performance.
- Low diesel consumption due to modern engines.
- Everything under control. Monitoring, control and nozzle calculation via the Hammelmann ES4 control unit. Intuitive navigation in many languages. All important operating data at a glance.
- Easy set-up due to easily accessible supply and high pressure connections.

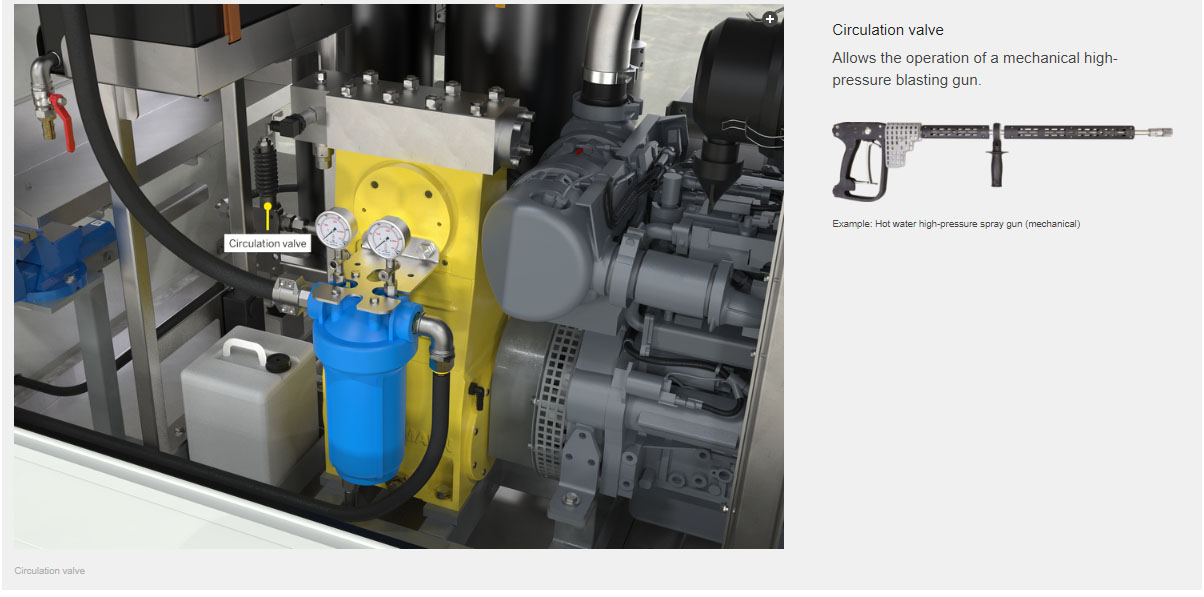

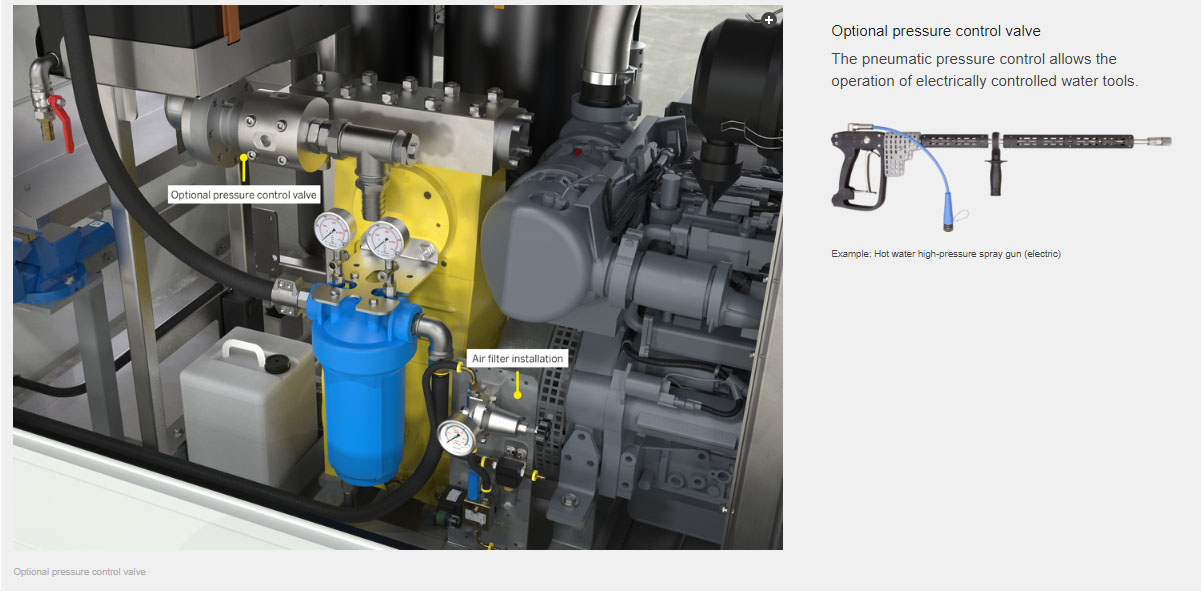

- High safety while operating tools secured by a mechanical or optional pneumatic pressure regulating valve.
- Economical industrial engines built by renowned manufacturers.
- Ample power reserves: 36 kW engines for real 30 kW pump performance.
- Low noise pump unit due to super soundproofing.
- Large fuel supply. Minimum of 8 hours operation possible due to the large internal fuel tank.
- Can be easily positioned by means of 4 point lifting lugs (optional).
- Environmentally safe operation due to totally enclosed bottom tray made of aluminium.
- High quality tandem chassis with overrun brake. Chassis is completely galvanised.

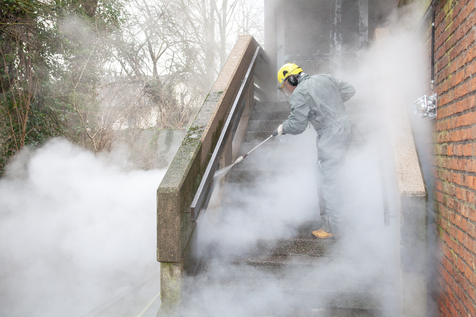

Typical application examples
Cleaning surfaces of any kind gently and thoroughly is one of the regular tasks in a large number of industries. Removing dirt, residues and deposits with high-pressure water offers several advantages. The process is very gentle on surfaces and the environment, and cleaning with high-pressure water offers several advantages in conjunction with our heating module.
Environmentally friendly cleaning without chemical additives or detergents
Gentle cleaning of surfaces without damaging them
A highly flexible and adaptable system, even for hard-to-reach places
Media gallery

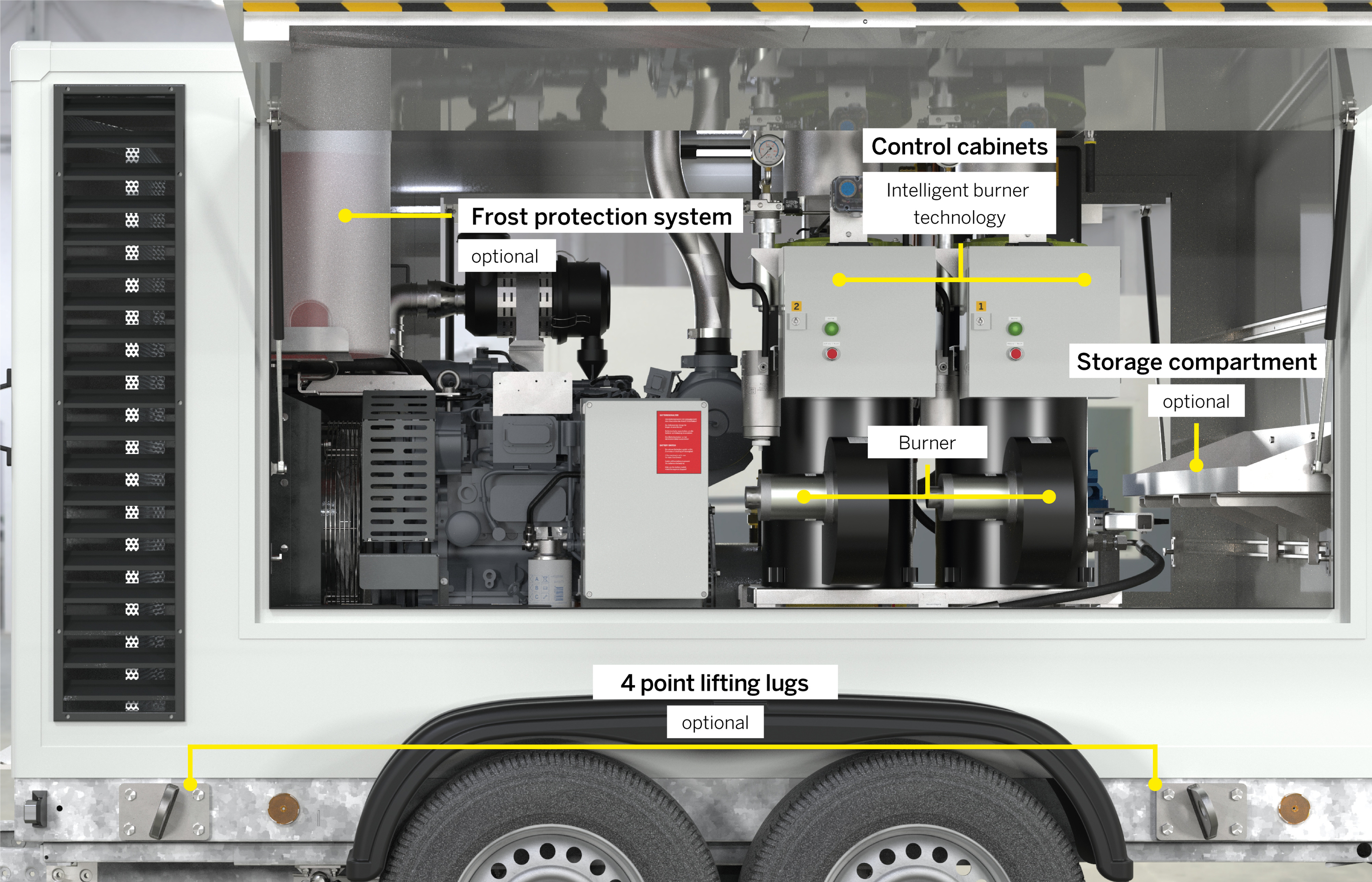

Options
Frost protection system
(Optional)

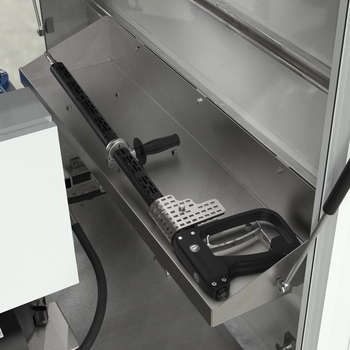

Storage compartment
(Optional)

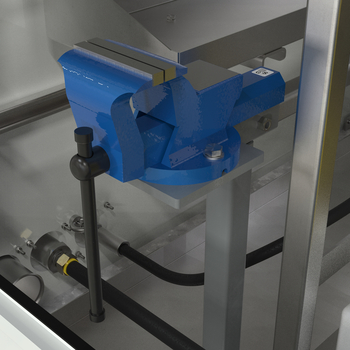

Vice
(Optional)
4-point lifting lugs
(Optional)
Equipment features
The whole system from a single source

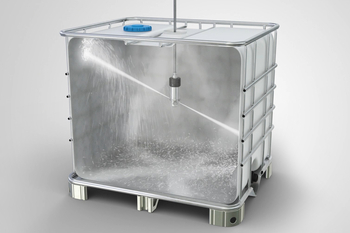

AQUAMAT S 600
The AQUAMAT S 600 tank cleaning unit has been developed for particularly small and medium-sized tank openings. Optional nozzle holders to meet every demand.
High-pressure spray guns
Configure your high pressure spray gun for your daily challenges. Available in mechanical, electrical and bypass versions and a variaty of accessories.

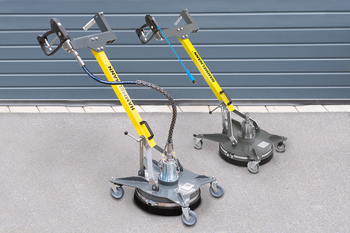

AQUABLAST® Basic
The hand-held floor cleaners are available as mechanical or electric version and convince with ergonomic cleaning of various surfaces.
JETBOY working tools
JETBOYS are ergonomic working tools in various configurations for fatigue-free water jetting - adjustable for a wide range of working positions.
