Diesel Units

<<

High-pressure pump units

The high-endurance unit in outstanding quality

Overview of available Aquajet® models

AQUAJET® 08


Aquajet® 08 models are available in various configurations and performance classes - as a road-going system or as a basic unit.

>> More Detail

Technical Data

Model

Aquajet® 08

Operating pressure

2500 bar

Flow rate

18 l/min

Motor output

98 kW

Pump output

88 kW


AQUAJET ® 14 / S 1600-14 / 1100-14


Aquajet® 14 models are available in various configurations and performance classes - as a road-going system, as a basic unit or as installation in a container..

>> More Detail

Technical Data

Model

Aquajet® 14

Plunger Ø

17,5 mm

Operating pressure

3200 bar

Flow rate

23 l/min

Motor output

160 kW

Pump output

140 kW

Model

Aquajet® 14

Plunger Ø

20 mm

Operating pressure

Pressure level 1: 2600 bar
Pressure level 2: 2800 bar

Flow rate

Pressure level 1: 30 l/min
Pressure level 2: 26 l/min

Motor output

160 kW

Pump output

140 kW

Model

S 1600-14

Plunger Ø

28 mm

Operating pressure

1400 bar

Flow rate

53 l/min

Motor output

160 kW

Pump output

140 kW

Model

S 1100-14

Plunger Ø

33 mm

Operating pressure

1000 bar

Flow rate

75 l/min

Motor output

160 kW

Pump output

140 kW

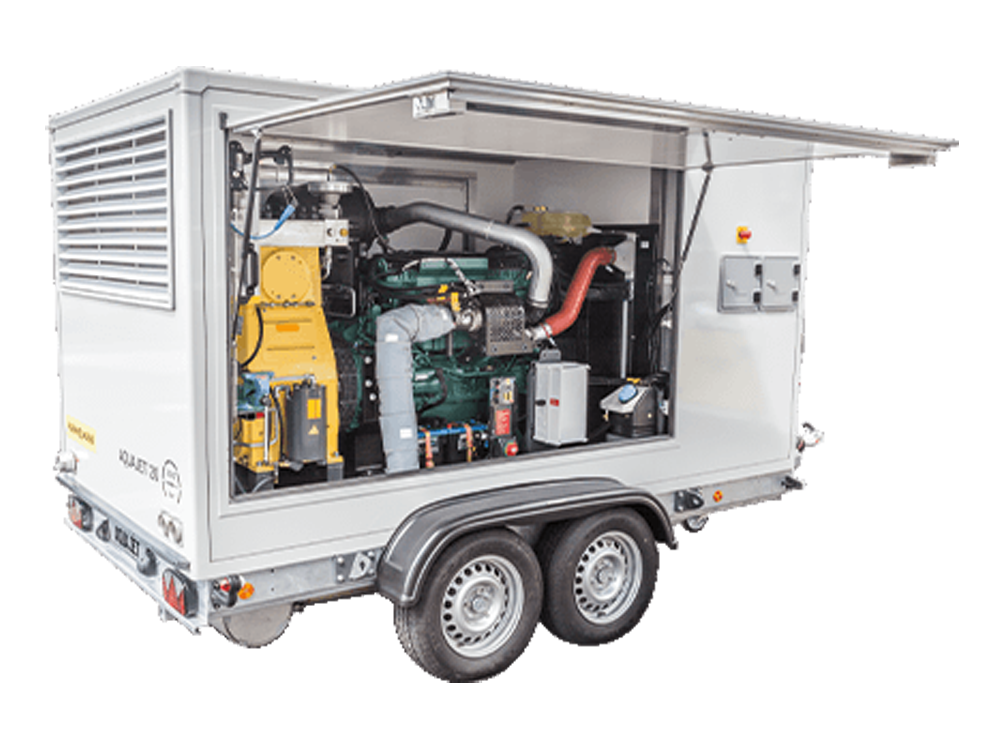

AQUAJET® 20 / S 1600-20 / S 1100-20


Aquajet® 20 models are available in various configurations and performance classes - as road-going or stationary units, as basic units or in container superstructures.

>> More Detail

Technical Data

Model

Aquajet® 20

Plunger Ø

17,5 mm

Operating pressure

3200 bar

Flow rate

28 l/min

Motor output

235 kW

Pump output

200 kW

Model

Aquajet® 20

Plunger Ø

20 mm

Operating pressure

2800 bar

Flow rate

40 l/min

Motor output

235 kW

Pump output

200 kW

Model

S 1600-20

Plunger Ø

28 mm

Operating pressure

1400 bar

Flow rate

78 l/min

Motor output

235 kW

Pump output

200 kW

Model

S 1100-20

Plunger Ø

30 mm

Operating pressure

1200 bar

Flow rate

87 l/min

Motor output

235 kW

Pump output

200 kW

Model

S 1100-20

Plunger Ø

33 mm

Operating pressure

1000 bar

Flow rate

110 l/min

Motor output

235 kW

Pump output

200 kW


AQUAJET® 30 / S 1600-30 / S 1100-30


Aquajet® 30 models are available in various configurations and performance classes - as stationary units, as basic units or in container superstructures. Typical applications are corrosion protection, concrete repair or tank cleaning.

>> More Detail

Technical Data

Model

Aquajet® 30

Plunger Ø

17,5 mm

Operating pressure

3200 bar

Flow rate

47 l/min

Motor output

345 kW

Pump output

300 kW

Model

Aquajet® 30

Plunger Ø

20 mm

Operating pressure

2800 bar

Flow rate

62 l/min

Motor output

345 kW

Pump output

300 kW

Model

S 1600-30

Plunger Ø

25 mm

Operating pressure

1600 bar

Flow rate

101 l/min

Motor output

345 kW

Pump output

300 kW

Model

S 1600-30

Plunger Ø

28 mm

Operating pressure

1300 bar

Flow rate

126 l/min

Motor output

345 kW

Pump output

300 kW

Model

S 1100-30

Plunger Ø

33 mm

Operating pressure

1030 bar

Flow rate

152 l/min

Motor output

235 kW

Pump output

300 kW


AQUAJET® 40 / S 1600-40 / S 1100-40


Aquajet® 40 models are available in various configurations and performance classes. The Aquajet® 40 model is a transmission unit that allows you to save up to 49 l/h of diesel fuel. Consume only the energy you need for your cleaning task.

>> More Detail

Technical Data

Model

Aquajet® 40

Plunger Ø

26 mm

Operating pressure

3000 bar

Flow rate

65 l/min

Motor output

450 kW

Pump output

400 kW

Model

Aquajet® 40

Plunger Ø

35 mm

Operating pressure

2000 bar

Flow rate

103 l/min

Motor output

450 kW

Pump output

400 kW

Model

S 1600-40

Plunger Ø

40 mm

Operating pressure

1600 bar

Flow rate

137 l/min

Motor output

450 kW

Pump output

400 kW

Model

S 1600-40

Plunger Ø

50 mm

Operating pressure

1000 bar

Flow rate

218 l/min

Motor output

450 kW

Pump output

400 kW
