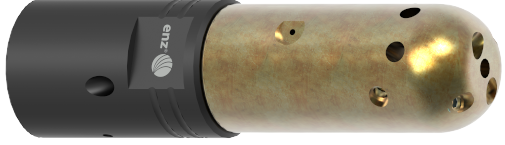

UC nozzles



Product description
The UC nozzles enz® nozzle (with brake jet) are applied for industrial cleaning of heat exchangers and completely clogged pipes.

The cross jet, which is directed to the front, cuts the material in the completely clogged pipe like a milling cutter. Simultaneously 2 radial jets of 60° - 90° clean the pipe wall. Through the same effect the removed material is flushed away. The cross jet causes a reaction force which, in many cases, makes it necessary to set the nozzle on a lance. The UC nozzles are available with or without thrust.

Through all that, the UC nozzle has become a tool for universal use.

Applications
- For industrial cleaning of heat exchangers and completely clogged pipes


UC09

06.009-18-M-2 UC9, 1'500 bar/ 22'000 psi M7 12 - 18 15 / 18 90°: 2 x 0.45   45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500
06.009-18-MS-2 UC9, 1'500 bar/ 22'000 psi M7 12 - 18 30 / 36 90°: 2 x 0.45 3 x 0.60 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500
06.009-18-N-1 UC9, 1'000 bar/ 14'500 psi 1/16" NPT 12 - 18 15 90°: 2 x 0.45 - 45°: 2 x 0.45 9.5 x 39 0.02 - 10000
06.009-18-NS-1 UC9, 1'000 bar/ 14'500 psi 1/16" NPT 12 - 18 30 90°: 2 x 0.45 3 x 0.60 45°: 2 x 0.45 9.5 x 39 0.02 - 10000
06.009-18-U-2 UC9, 1'500 bar/ 22'000 psi 1/4" x 28UNF 12 - 18 15 / 18 90°: 2 x 0.45 - 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500
06.009-18-UL-2 UC9, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 12 - 18 15 / 18 90°: 2 x 0.45 - 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500
06.009-18-ULS-2 UC9, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 12 - 18 30 / 36 90°: 2 x 0.45 3 x 0.60 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500
06.009-18-US-2 UC9, 1'500 bar/ 22'000 psi 1/4" x 28UNF 12 - 18 30 / 36 90°: 2 x 0.45 3 x 0.60 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500

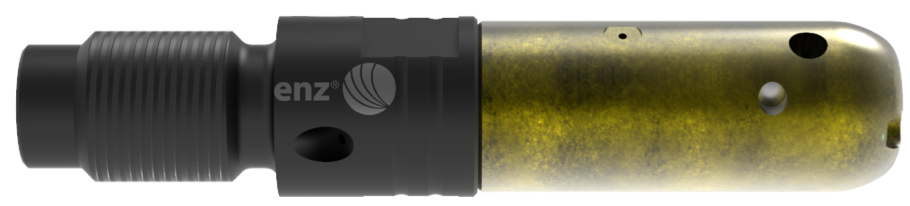

UC09 with male thread

06.009-18-Ub-2 UC9, 1'500 bar/ 22'000 psi 5/16" x 24 UNF (male) 12 - 18 15 / 18 90°: 2 x 0.45 - 45°: 2 x 0.45 9.5 x 39 0.02 - 1000 / 1500




UC13

06.013-18-2 UC13, 1'500 bar/ 22'000 psi 1/8" BSPP 16 - 20 16 / 18 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-N-1 UC13, 1'000 bar/ 14'500 psi 1/8" NPT 16 - 20 16 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000
06.013-18-NS-1 UC13, 1'000 bar/ 14'500 psi 1/8" NPT 16 - 20 28 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000
06.013-18-S-2 UC13, 1'500 bar/ 22'000 psi 1/8" BSPP 16 - 20 28 / 36 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UA-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF 16 - 20 16 / 18 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UAL-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 16 - 20 16 / 18 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UALS-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 16 - 20 28 / 36 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UALS-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF 16 - 20 28 / 36 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UB-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF 16 - 20 16 / 18 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UBL-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 16 - 20 16 / 18 90°: 2 x 0.50 - 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UBLS-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 16 - 20 28 / 36 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-18-UBS-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF 16 - 20 28 / 36 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.50 13 x 48 0.03 - 1000 / 1500
06.013-30-2 UC13, 1'500 bar/ 22'000 psi 1/8" BSPP 16 - 20 24 / 30 90°: 2 x 0.50 - 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-N-1 UC13, 1'000 bar/ 14'500 psi 1/8" NPT 16 - 20 24 90°: 2 x 0.50 - 45°: 2 x 0.70 13 x 48 0.03 - 1000
06.013-30-NS-1 UC13, 1'000 bar/ 14'500 psi 1/8" NPT 16 - 20 42 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000
06.013-30-S-2 UC13, 1'500 bar/ 22'000 psi 1/8" BSPP 16 - 20 42 / 52 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UAL-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 16 - 20 24 / 30 90°: 2 x 0.50 - 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UALS-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF LH 16 - 20 42 / 52 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UAS-2 UC13, 1'500 bar/ 22'000 psi 1/4" x 28UNF 16 - 20 42 / 52 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UB-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF 16 - 20 24 / 30 90°: 2 x 0.50 - 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UBL-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 16 - 20 24 / 30 90°: 2 x 0.50 - 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UBLS-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 16 - 20 42 / 52 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500
06.013-30-UBS-2 UC13, 1'500 bar/ 22'000 psi 3/8" x 24UNF 16 - 20 42 / 52 90°: 2 x 0.50 3 x 0.60 45°: 2 x 0.70 13 x 48 0.03 - 1000 / 1500




UC18

06.018-30-A-2 UC18, 1'500 bar/ 22'000 psi 1/8" BSPP 22 - 25 27 / 30 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-AS-2 UC18, 1'500 bar/ 22'000 psi 1/8" BSPP 22 - 25 40 / 50 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-B-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 27 / 30 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-BS-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 40 / 50 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-NB-1 UC18, 1'500 bar/ 22'000 psi 1/4" NPT 22 - 25 27 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08 - 1000
06.018-30-NBS-1 UC18, 1'500 bar/ 22'000 psi 1/4" NPT 22 - 25 40 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000
06.018-30-UBL-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 27 / 30 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08   1000 / 1500
06.018-30-UBLS-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 40 / 50 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-UC-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 27 / 30 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-UCL-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 27 / 30 90°: 2 x 0.50 - 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-UCLS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 40 / 50 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-30-UCS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 40 / 50 90°: 2 x 0.50 3 x M3 45°: 2 x 0.50 18 x 65 0.08 - 1000 / 1500
06.018-50-A-2 UC18, 1'500 bar/ 22'000 psi 1/8" BSPP 22 - 25 45 / 50 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-AS-2 UC18, 1'500 bar/ 22'000 psi 1/8" BSPP 22 - 25 62 / 77 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-B-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 45 / 50 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-BS-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 62 / 77 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-NB-1 UC18, 1'000 bar/ 14'500 psi 1/4" NPT 22 - 25 45 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000
06.018-50-NBS-1 UC18, 1'000 bar/ 14'500 psi 1/4" NPT 22 - 25 62 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000
06.018-50-UBL-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 45 / 50 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-UBLS-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 62 / 77 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-UC-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 45 / 50 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-UCL-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 45 / 50 90°: 2 x 0.75 - 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-UCLS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 62 / 77 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-50-UCS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 62 / 77 90°: 2 x 0.75 3 x M3 45°: 2 x 0.75 18 x 65 0.08 - 1000 / 1500
06.018-70-B-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 60 / 70 90°: 2 x 0.90 - 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-BS-2 UC18, 1'500 bar/ 22'000 psi 1/4" BSPP 22 - 25 90 / 110 90°: 2 x 0.90 3 x M3 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-NB-1 UC18, 1'000 bar/ 14'500 psi 1/4" NPT 22 - 25 60 90°: 2 x 0.90 - 45°: 2 x 0.90 18 x 65 0.08 - 1000
06.018-70-NBS-1 UC18, 1'000 bar/ 14'500 psi 1/4" NPT 22 - 25 90 90°: 2 x 0.90 3 x M3 45°: 2 x 0.90 18 x 65 0.08 - 1000
06.018-70-UBL-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 60 / 70 90°: 2 x 0.90 - 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-UBLS-2 UC18, 1'500 bar/ 22'000 psi 3/8" x 24UNF LH 22 - 25 90 / 110 90°: 2 x 0.90 3 x M3 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-UC-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 60 / 70 90°: 2 x 0.90 - 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-UCL-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 60 / 70 90°: 2 x 0.90 - 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-UCLS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 22 - 25 90 / 110 90°: 2 x 0.90 3 x M3 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500
06.018-70-UCS-2 UC18, 1'500 bar/ 22'000 psi 9/16" x 18UNF 22 - 25 90 / 110 90°: 2 x 0.90 3 x M3 45°: 2 x 0.90 18 x 65 0.08 - 1000 / 1500





UC22

06.022-A-2 UC22, 1'500 bar/ 22'000 psi 1/4" BSPP 26 - 30 25 / 30 90°: 2 x M4 - 45°: 2x M4 22 x 73 0.13 - 1000 / 1500
06.022-AS-2 UC22, 1'500 bar/ 22'000 psi 1/4" BSPP 26 - 30 40 / 50 90°: 2 x M4 3 x M4 45°: 2x M4 22 x 73 0.13 - 1000 / 1500
06.022-NA-1 UC22, 1'000 bar/ 14'500 psi 1/4" NPT 26 - 30 25 90°: 2 x M4 - 45°: 2x M4 22 x 73 0.13 - 1000
06.022-NAS-1 UC22, 1'000 bar/ 14'500 psi 1/4" NPT 26 - 30 40 90°: 2 x M4 3 x M4 45°: 2x M4 22 x 73 0.13 - 1000
06.022-NB-1 UC22, 1'000 bar/ 14'500 psi 3/8" NPT 26 - 30 25 90°: 2 x M4 - 45°: 2x M4 22 x 73 0.13 - 1000
06.022-NBS-1 UC22, 1'000 bar/ 14'500 psi 3/8" NPT 26 - 30 40 90°: 2 x M4 3 x M4 45°: 2x M4 22 x 73 0.13 - 1000
06.022-UB-2 UC22, 1'500 bar/ 22'000 psi 9/16" x 18UNF 26 - 30 25 / 30 90°: 2 x M4 - 45°: 2x M4 22 x 73 0.13 - 1000 / 1500
06.022-UBL-2 UC22, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 26 - 30 25 / 30 90°: 2 x M4 - 45°: 2x M4 22 x 73 0.13 - 1000 / 1500
06.022-UBLS-2 UC22, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 26 - 30 40 / 50 90°: 2 x M4 3 x M4 45°: 2x M4 22 x 73 0.13 - 1000 / 1500
06.022-UBS-2 UC22, 1'500 bar/ 22'000 psi 9/16" x 18UNF 26 - 30 40 / 50 90°: 2 x M4 3 x M4 45°: 2x M4 22 x 73 0.13 - 1000 / 1500



UC28

06.028-A-2 UC28, 1'500 bar/ 22'000 psi 1/4" BSPP 30 - 42 25 / 30 90°: 2 x M4 - 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-AS-2 UC28, 1'500 bar/ 22'000 psi 1/4" BSPP 30 - 42 40 / 50 90°: 2 x M4 3 x M4 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-B-2 UC28, 1'500 bar/ 22'000 psi 3/8" BSPP 30 - 42 25 / 30 90°: 2 x M4 - 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-BS-2 UC28, 1'500 bar/ 22'000 psi 3/8" BSPP 30 - 42 40 / 50 90°: 2 x M4 3 x M4 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-NB-1 UC28, 1'000 bar/ 14'500 psi 3/8" NPT 30 - 42 25 90°: 2 x M4 - 45°: 2 x M4 28 x 83 0.21 - 1000
06.028-NBS-1 UC28, 1'000 bar/ 14'500 psi 3/8" NPT 30 - 42 40 90°: 2 x M4 3 x M4 45°: 2 x M4 28 x 83 0.21 - 1000
06.028-UB-2 UC28, 1'500 bar/ 22'000 psi 9/16" x 18UNF 30 - 42 25 / 30 90°: 2 x M4 - 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-UBL-2 UC28, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 30 - 42 25 / 30 90°: 2 x M4 - 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-UBLS-2 UC28, 1'500 bar/ 22'000 psi 9/16" x 18UNF LH 30 - 42 40 / 50 90°: 2 x M4 3 x M4 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
06.028-UBS-2 UC28, 1'500 bar/ 22'000 psi 9/16" x 18UNF 30 - 42 40 / 50 90°: 2 x M4 3 x M4 45°: 2 x M4 28 x 83 0.21 - 1000 / 1500
